Laser Triangulation Metrology Machine (OD/ID)
2026MSc Thesis · Individual project · University of Birmingham
Non-contact optical inspection machine measuring OD, ID, roundness and wall thickness of machined steel cylinders (bores from 127 mm, OD to 203 mm, length 610 mm) with automated pass/fail QC reporting.
- GUM/NIST uncertainty budget targeting expanded uncertainty U(k=2) ≤ 25 µm against a 254 µm tolerance (U/T ≤ 10%), validated with Gage R&R
- 160-item engineering BOM and 43-part CAD assembly with collision resolution; vendor engagement with RIFTEK, Renishaw and Tecnotion
- Architecture aligned to a ~US$25,000 BOM for affordable deployment in machine shops
PythonSolidWorksLaser profilersGUM/NISTGage R&RDetails withheld pending IP review.
Applied Robotics · Team of 4 · University of Birmingham

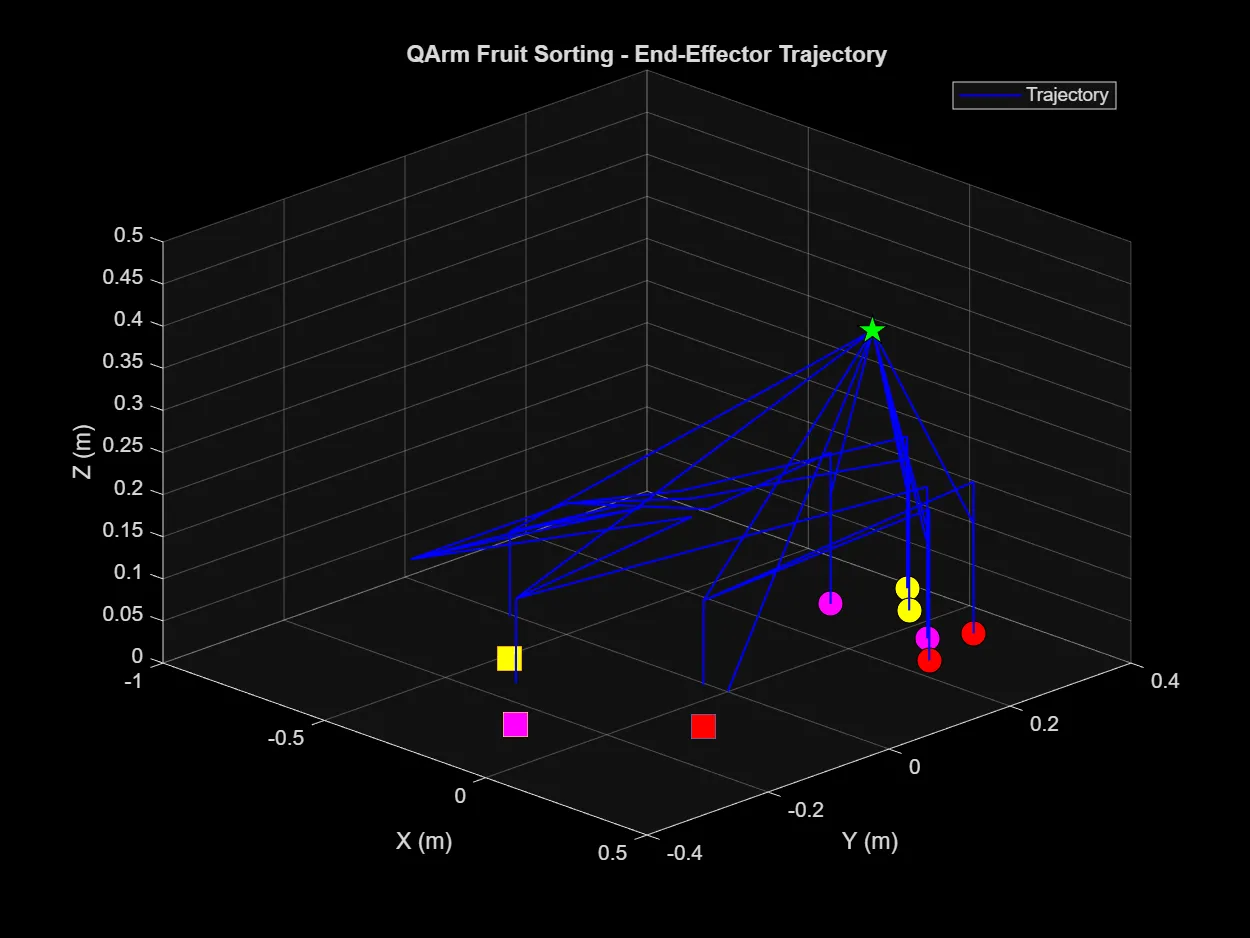

End-to-end pick-and-place on a 4-DOF QArm with an RGB-D camera, sorting 14 fruits into 3 baskets in autonomous and teleoperated modes.
- Analytical inverse kinematics with Newton-Raphson refinement: 0.0002 mm max round-trip error across four solution branches
- 13-state finite-state-machine controller with cubic rest-to-rest spline trajectories and Z-height collision safeguards
- Hand-eye calibration via closed-form Umeyama SVD; HSV + circularity classifier with pixel-to-world back-projection
Python 3.13NumPyOpenCVQuanser SDK (HIL)MATLAB/Simulink
3D mapping & perception module · Team of 4 · University of Birmingham

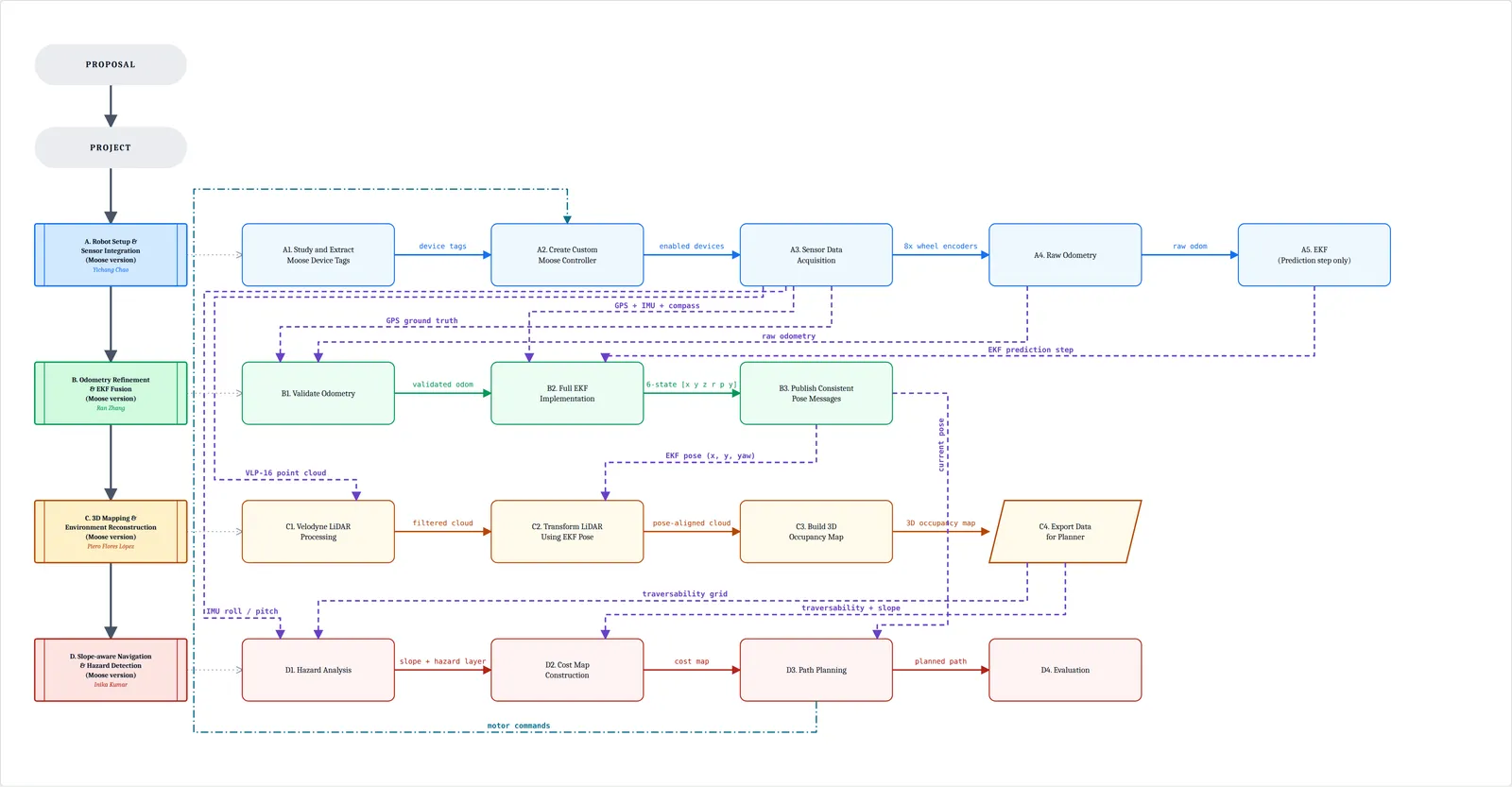

Mapping and perception for a Clearpath Moose 8-wheel grass-cutting robot on hilly terrain with slope hazard avoidance (>20°).
- Wrote the Extended Kalman Filter fusing wheel odometry and compass heading — drift-free localization on slopes
- OctoMap probabilistic occupancy (depth 12) with dynamic recentring, plus a 200×200 elevation grid with slope/roughness traversability costs
- LiDAR pipeline: range filtering (0.3–50 m), voxel downsampling (0.1 m), ICP scan matching; integrated with the team's A* planner and GPS/IMU fusion
C (2,600 lines)WebotsEKFOctoMapICP
Team of 4 · Tecnológico de Monterrey in partnership with MIT

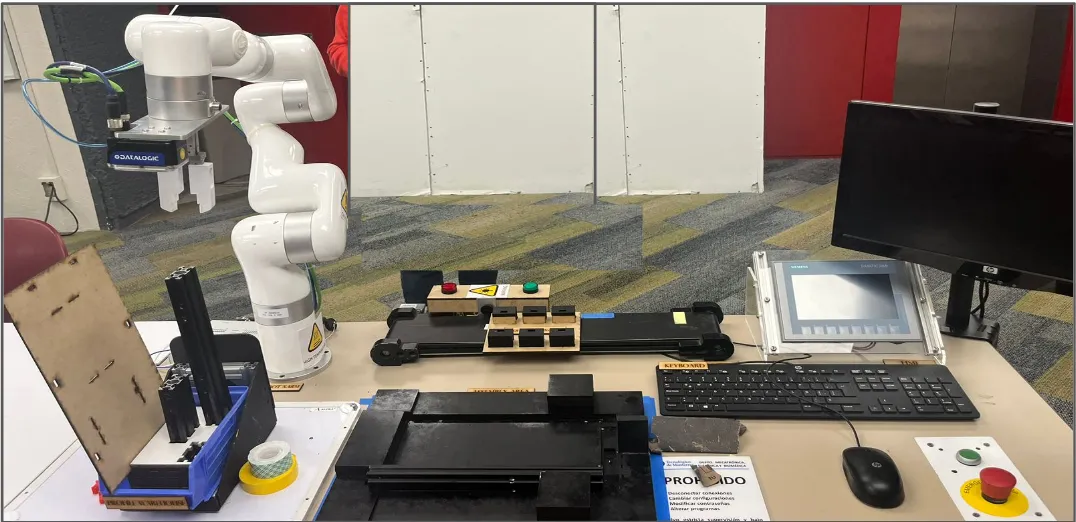

Semi-autonomous assembly station for MIT’s FrED device: cobot pick-and-place, PLC coordination, machine vision QC and a digital twin.
- Siemens PLC (7 Ladder Logic networks): conveyor control, photoelectric sensors, robot–PLC bidirectional signaling, HMI status
- Datalogic vision over TCP/IP (192.168.1.130:20000) for real-time coordinate transfer and camera-to-gripper offset compensation
- Digital twin in Siemens Plant Simulation: 245 units, 41 TPH, 81.45% value-added; meets the ≤2 min/station target
PythonxArm SDKSiemens TIA PortalDatalogic visionPlant Simulation
